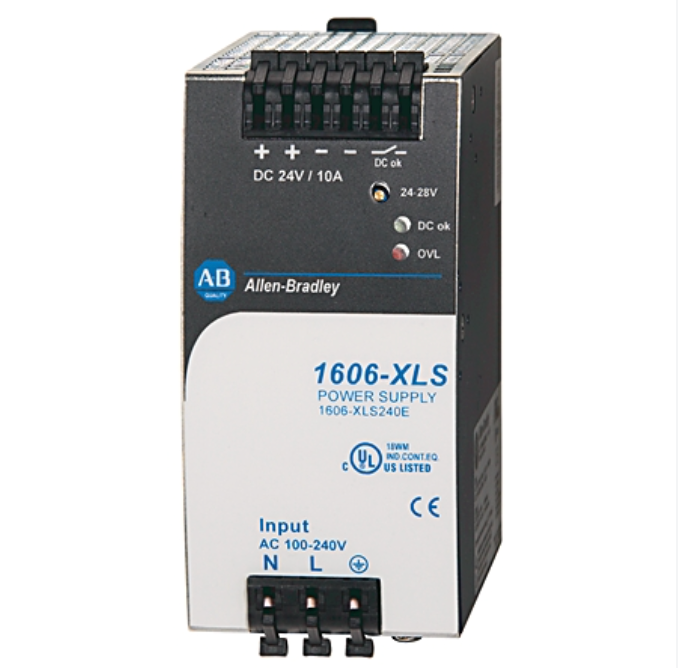

Allen-Bradley 1606-XLS240E 24V DC 10A 240W DIN Rail Power Supply
Allen-Bradley 1606-XLS240E 24V DC 10A 240W DIN Rail Power Supply
Short DescriptionAllen-Bradley 1606-XLS240E is a high-performance DIN rail power supply providing 24–28V DC output, up to 10A and 240W, with a wide 100–240V AC input range for industrial automation applications.
Product DescriptionThe Allen-Bradley 1606-XLS240E is a Bulletin 1606-XLS Performance Series switched-mode power supply designed for industrial automation and control systems. It provides a regulated 24–28V DC output, with a nominal output rating of 24V DC, 10A and 240W.
The unit accepts a wide 100–240V AC input and also supports DC input. Its compact DIN-rail design is only 60 mm wide, helping save valuable space inside electrical control cabinets. The power supply features active power factor correction (PFC), high efficiency up to approximately 93.5%, DC-OK relay monitoring and short-term overload capability.
Key Features
Brand: Allen-Bradley / Rockwell Automation
Part Number: 1606-XLS240E
Series: Bulletin 1606-XLS
Product Type: Switched-Mode Power Supply
Output Voltage: 24–28V DC
Nominal Output: 24V DC
Output Current: 10A
Output Power: 240W
Input: 100–240V AC
DC Input: Supported
Mounting: DIN Rail
Efficiency: Up to 93.5% typical
Power Factor: 0.92 typical
DC-OK Relay Contact: Yes
Protection Rating: IP20
Width: 60 mm
Height: 124 mm
Depth: 117 mm
Weight: Approx. 900 g
Technical Specifications
Item | Specification |
Brand | Allen-Bradley |
Manufacturer | Rockwell Automation |
Model | 1606-XLS240E |
Series | Bulletin 1606-XLS |
Product Type | DIN Rail Power Supply |
Input Voltage | 100–240V AC |
Input Frequency | 47–63 Hz |
DC Input | Yes |
Output Voltage | 24–28V DC |
Nominal Output | 24V DC |
Output Current | 10A |
Output Power | 240W |
Efficiency | 93.5% typical |
Power Factor | 0.92 typical |
Hold-up Time | 27 ms |
DC-OK Relay | Yes |
Mounting | DIN Rail |
Protection | IP20 |
Dimensions | 60 × 124 × 117 mm |
Weight | Approx. 0.9 kg |
Applications
Industrial automation
PLC control systems
Control cabinets
Factory automation
Machine tools
Production lines
Industrial control systems
24V DC control circuits
Sensor and actuator power supply
