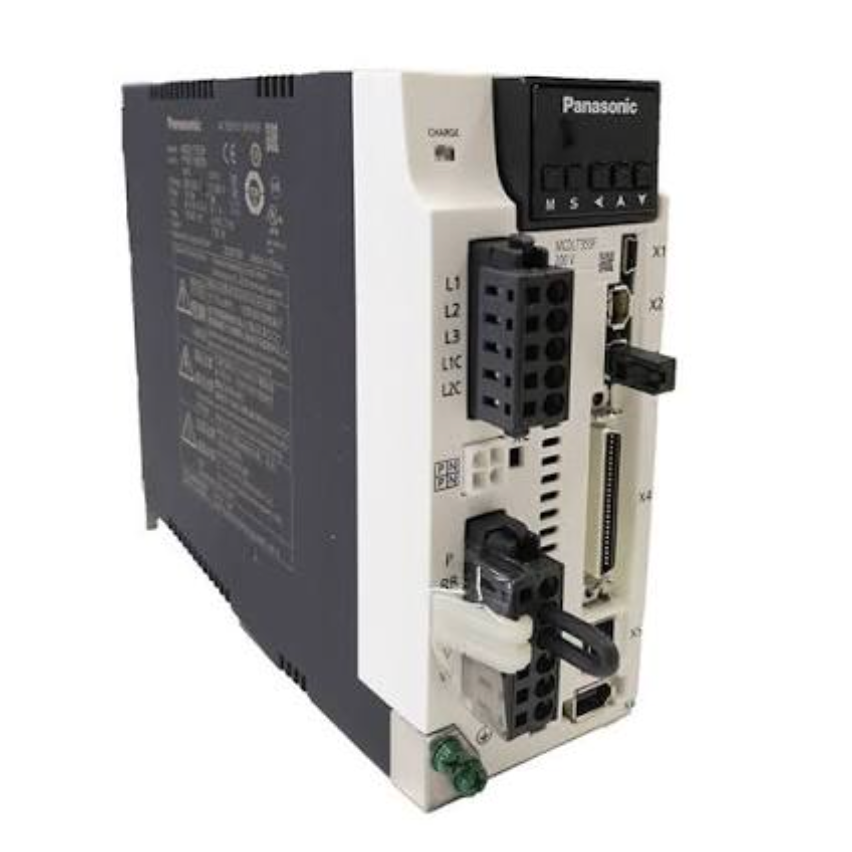

Panasonic MCDLN35SE Servo Driver 750W 200V | MINAS A6S
PANASONIC MCDLN35SE MINAS A6S AC Servo Driver 750W 200V
Short DescriptionPanasonic MCDLN35SE is a MINAS A6S A6SE series AC servo driver designed for precise position control applications. It supports pulse-train input and single/three-phase 200V power supply.
Product DescriptionThe Panasonic MCDLN35SE is a MINAS A6S Series A6SE AC Servo Driver designed for industrial motion control and positioning applications. It is a basic position-control type driver using a pulse-train interface and is intended for incremental-system applications.
The MCDLN35SE operates with single-phase or three-phase 200–240 V AC input and features a compact C-frame design. It provides USB communication for parameter setting and status monitoring and includes a built-in regenerative resistor and dynamic brake function.
According to Panasonic's MINAS A6 catalog, the MCDLN35SE is the applicable basic-type driver for 750 W AC200 V MHMF082L-series servo motors.
Key Features
Brand: Panasonic
Part Number: MCDLN35SE
Series: MINAS A6S
Sub-Series: A6SE
Product Type: AC Servo Driver
Control Type: Position Control
Interface: Pulse Train Input
Power Supply: Single/3-phase 200–240 V AC
Frame: C-Frame
Response Frequency: 3.2 kHz
Encoder Feedback: 23-bit
USB Communication: Yes
Built-in Regenerative Resistor: Yes
Dynamic Brake: Yes
Safety Function: None
Dimensions: 65 × 150 × 170 mm
Weight: Approx. 1.6 kg
Technical Specifications
Item | Specification |
Brand | Panasonic |
Model | MCDLN35SE |
Series | MINAS A6S / A6SE |
Type | AC Servo Driver |
Control | Position Control |
Input | Single/3-phase 200–240 V AC |
Interface | Pulse Train |
Frame | C-Frame |
Response Frequency | 3.2 kHz |
Encoder | 23-bit |
Communication | USB |
Regenerative Resistor | Built-in |
Safety Function | None |
Dimensions | 65 × 150 × 170 mm |
Weight | Approx. 1.6 kg |
Compatible Motor Series | MHMF082L series |
Applicable Motor Output | 750 W |
Applications
Industrial automation
CNC machinery
Packaging equipment
Semiconductor equipment
Pick-and-place machines
Precision positioning systems
Factory automation
Machine tool motion control
