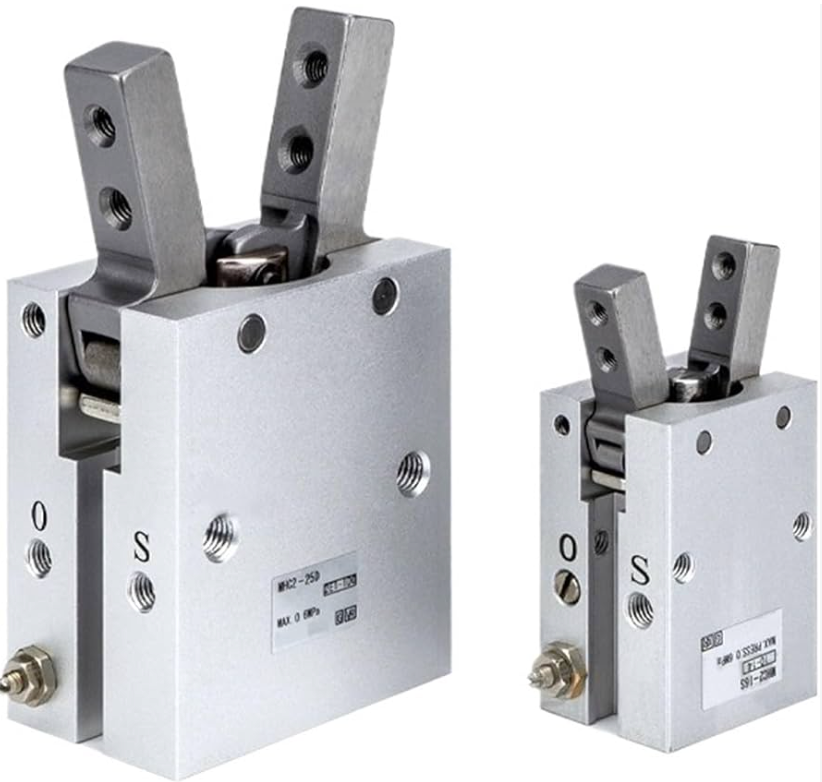

SMC MHC2-25D-M9BW Angular Air Gripper 25mm with M9BW Auto Switch
SMC MHC2-25D-M9BW Angular Air Gripper 25mm with M9BW Auto Switch
Short DescriptionSMC MHC2-25D-M9BW is a compact double-acting angular air gripper with a 25 mm bore and M9BW two-color solid-state auto switch, designed for reliable gripping in industrial automation applications.
Product DescriptionThe SMC MHC2-25D-M9BW is an MHC2 Series angular-style pneumatic air gripper designed for automated gripping and handling applications. It features a compact body with a double-piston mechanism, providing high gripping force while maintaining a small installation footprint.
The gripper has a 25 mm bore, double-acting operation, and an effective gripping moment of 1.36 N·m at 0.5 MPa. Its angular fingers operate within an opening/closing range of approximately 30° to -10°, making it suitable for workpieces with irregular shapes or applications where installation space is limited.
The M9BW option provides a two-color, non-contact solid-state auto switch, with a 2-wire configuration, LED indicator and DC 10–28 V operating range.
Key Features
Brand: SMC
Model: MHC2-25D-M9BW
Series: MHC2
Product Type: Angular Air Gripper
Bore Size: 25 mm
Action: Double Acting
Gripping Moment: 1.36 N·m
Opening/Closing Angle: 30° to -10°
Auto Switch: M9BW
Switch Type: 2-color solid-state auto switch
Switch Wiring: 2-wire
Switch Voltage: DC 10–28 V
Built-in: Speed adjustment throttle
Application: Industrial automation / robotic gripping
Technical Specifications
Item | Specification |
Brand | SMC |
Model | MHC2-25D-M9BW |
Series | MHC2 |
Product Type | Angular Pneumatic Gripper |
Bore Size | 25 mm |
Operation | Double Acting |
Gripping Moment | 1.36 N·m |
Opening/Closing Angle | 30° to -10° |
Auto Switch | M9BW |
Switch Type | Solid-State, 2-Color |
Switch Wiring | 2-Wire |
Switch Voltage | DC 10–28 V |
Max. Operating Frequency | 180 c.p.m. |
Ambient / Fluid Temperature | -10 to 60°C |
Lubrication | Not required |
Application | Automated Gripping |
Applications
Industrial automation
Robotic pick-and-place
Material handling
Assembly equipment
Packaging machinery
Parts handling
Machine automation
Small-part gripping
